Three Sisters Dynamic Turnings

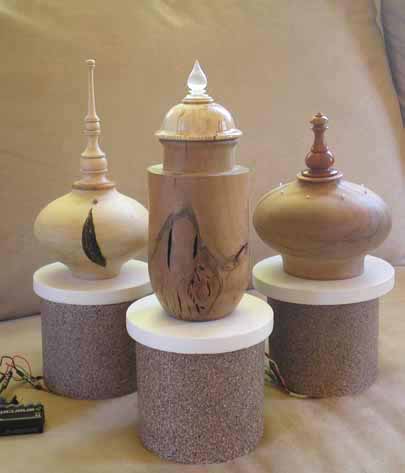

A three piece set, representing three of my neighborhood "adoptees" - all sisters. While they appear to be somewhat familiar static turnings, they in fact are dynamic - changing their appearance over time.

In addition to their differences in appearance, each sister also has a unique behavior, two of which are dependent on what's going on around them - specifically in the amount of light falling on them.

Each piece uses a micro-computer/controller to which hidden components are connected and controlled. The Middle and Youngest sisters have light detectors incorporated in them, along with Light Emitting Diodes which are triggered by the light detector. The one on the left also has a small speaker inside which puts out sounds - based on how much or how little light is falling on its light detecting sensor.

To convey what these pieces DO requires video. I hope including a link to their videos doesn't violate any rules here/

The Youngest Sister's youtube vid

http://www.youtube.com/profile?user=charlieb1946#p/u/12/QZJL
XoZAUwM

The Middle Sister's youtube vid

http://www.youtube.com/user/charlieb1946#p/u/12/Uo4xLYxGGG4

The Oldest Sister's youtube vid

http://www.youtube.com/watch?v=dp4NZDfjp60

More about two of these pieces here

http://web.hypersurf.com/~charlie2/Turning/Arduino/Arduino3.html

Questions, comments, constructive criticism, suggestions all welcomed.
Charlie, were you an Erector set deprived child? 8^)) Its great to retain that child-like curiosity of "I wonder what would happen if I _______!" Keep it going.
