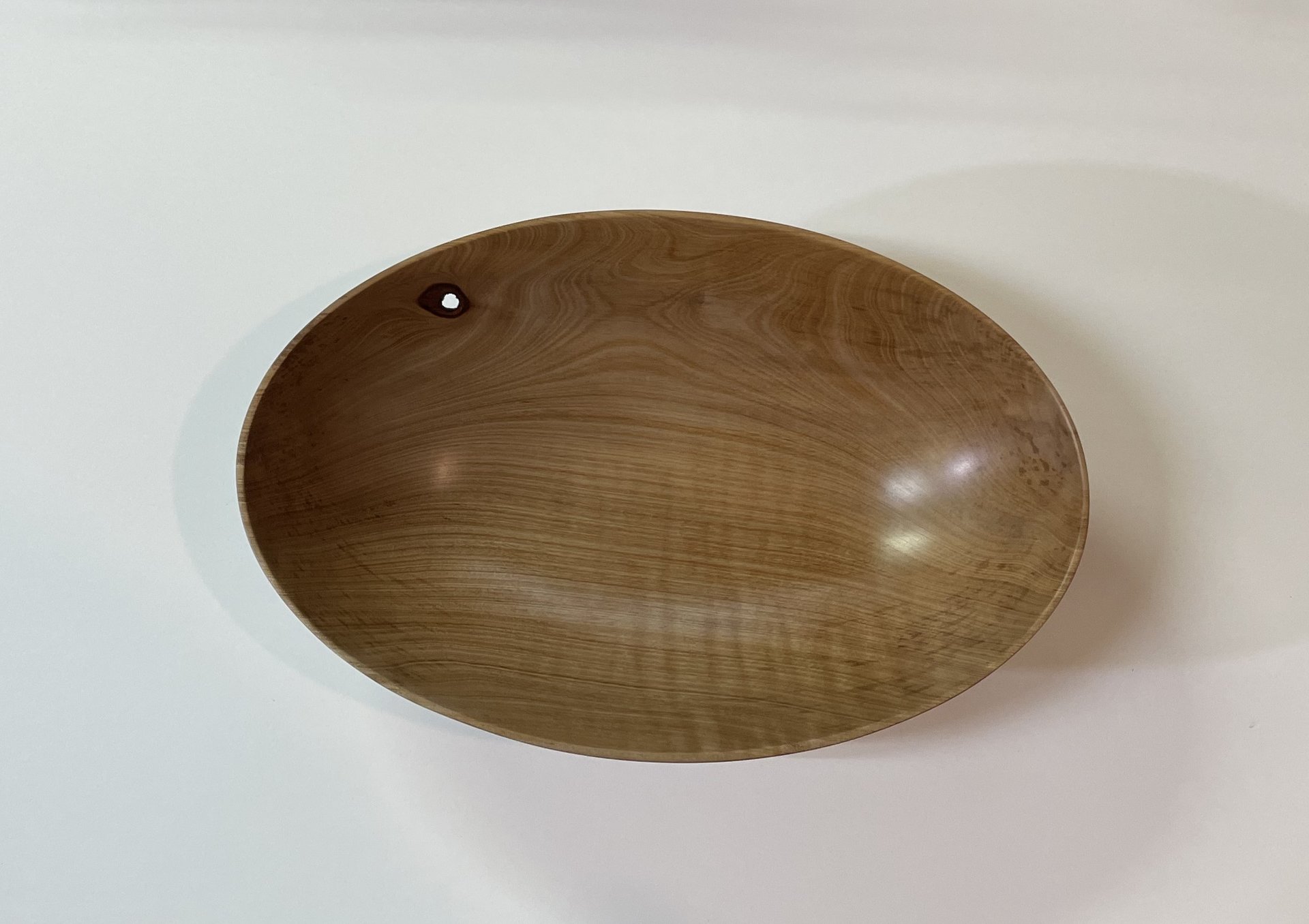

A simple Oval

Turning the oval bowl on a VOD is tricky and I was having trouble getting the bottom oval to be exactly in line with the top oval. The bowl has to be in the exact position when you take it off the chuck and place it in a donut chuck to finish the bottom. If the ovals are out even by 1 degree the bowl will appear to twist, its tricky to explain. I made a jig to hold the bowl in the exact position and this is the first bowl I tested it on.
Click to expand...
  • Like
  • Love
Reactions: Marc Banka, Richard Patrick, Russ Braun and 17 others
T
I certainly understand the challenge of matching the top and bottom sides. I typically cut an outside perimeter cut in the first operation that I can test with a dial indicator when I turn the piece around.

Tim

Dave Roberts
Tim Hunter said:
I certainly understand the challenge of matching the top and bottom sides. I typically cut an outside perimeter cut in the first operation that I can test with a dial indicator when I turn the piece around.

Tim
Click to expand...
Tim are you turning on an oval device you made or the Vicmarc VOD, something tells me you made yours?
