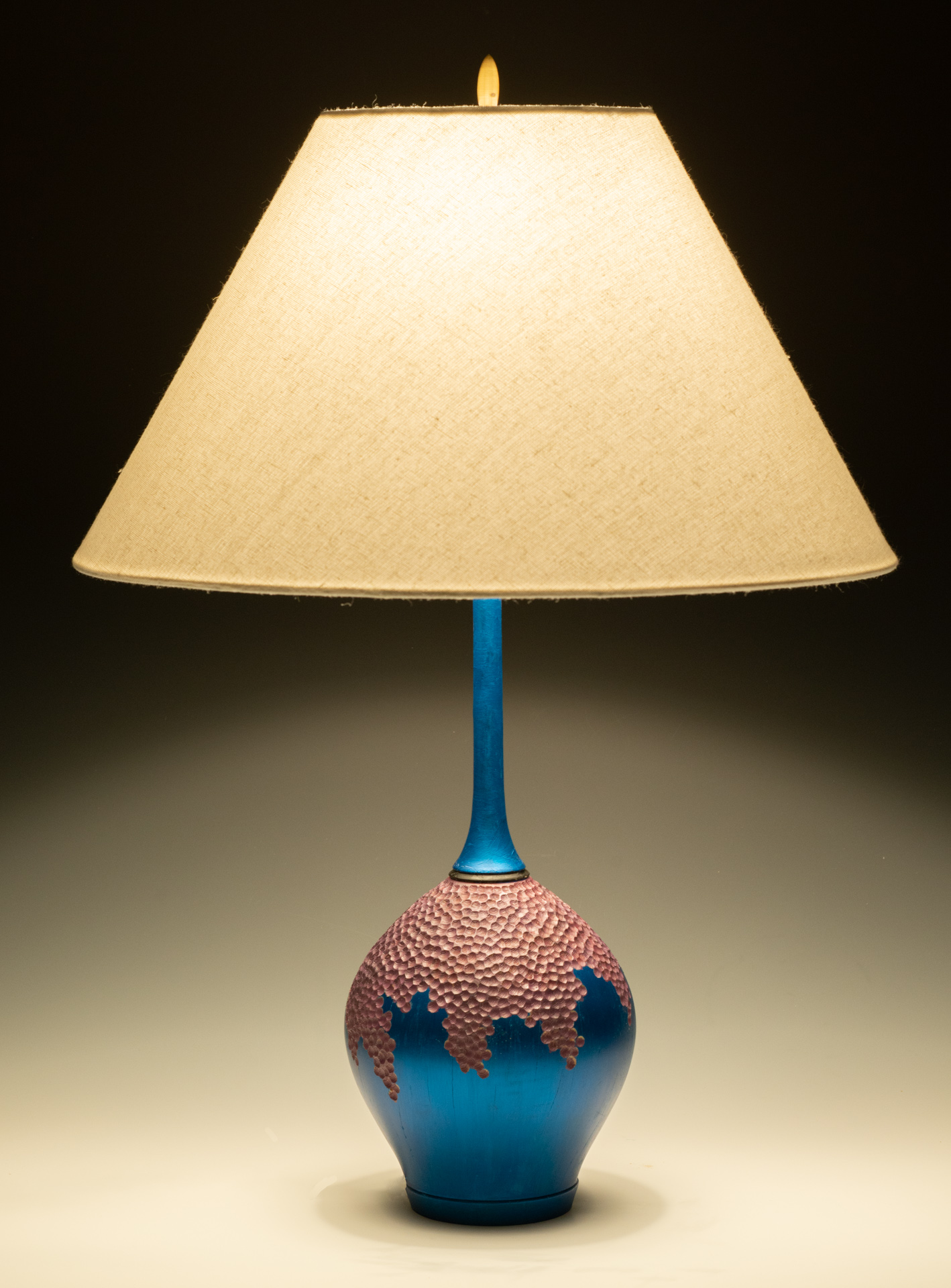

Lamp with carved and painted base

John:
The lamp is exquisite as well. The textured area vs the colored area is visually very effective. What did you use to create the textured part of the design?
Thank you
Barry W. Larson
Calgary, Alberta, Canada eh!

Barry Larson said:

John:
The lamp is exquisite as well. The textured area vs the colored area is visually very effective. What did you use to create the textured part of the design?
Thank you
Barry W. Larson
Calgary, Alberta, Canada eh!

Click to expand...

Thank you Barry. I used the MasterCarver Micro-Pro rotary tool with a Sabuurtooth ball-shaped burr.

John Vaeth said:

Thank you Barry. I used the MasterCarver Micro-Pro rotary tool with a Sabuurtooth ball-shaped burr.

Click to expand...

Thanks John. Did you use a specific coursness of ball for this? I have the Kutzall burrs in both course and fine, but from the picture it looks like your finish is a bit smoother than I get. What sort of speed does your rotary tool run at for this work. I use either M12 die grinders or a M12 rotary tool (I hate cords in my way) for this type of work, but I'm currently working on getting a better finish on the bottoms of the "dimples".
Cheers.
Barry

Barry Larson said:

Thanks John. Did you use a specific coursness of ball for this? I have the Kutzall burrs in both course and fine, but from the picture it looks like your finish is a bit smoother than I get. What sort of speed does your rotary tool run at for this work. I use either M12 die grinders or a M12 rotary tool (I hate cords in my way) for this type of work, but I'm currently working on getting a better finish on the bottoms of the "dimples".
Cheers.
Barry

Click to expand...

I use some Kutzall burrs as well as the Sabuurtooth and, quite honestly, I'm not sure which one I used here but it was a 3/8" fine sphere with 1/8" shank. Saburrtooth makes an extra-fine version that gives an even smoother finish. I sometimes use the 3/4" 3M radial polishing discs (white, 120 grit) to move any fuzzies or smooth things out a bit (use gently!).

John Vaeth said:

I use some Kutzall burrs as well as the Sabuurtooth and, quite honestly, I'm not sure which one I used here but it was a 3/8" fine sphere with 1/8" shank. Saburrtooth makes an extra-fine version that gives an even smoother finish. I sometimes use the 3/4" 3M radial polishing discs (white, 120 grit) to move any fuzzies or smooth things out a bit (use gently!).

Click to expand...

Thanks John.
Barry

John Vaeth said:

I use some Kutzall burrs as well as the Sabuurtooth and, quite honestly, I'm not sure which one I used here but it was a 3/8" fine sphere with 1/8" shank. Saburrtooth makes an extra-fine version that gives an even smoother finish. I sometimes use the 3/4" 3M radial polishing discs (white, 120 grit) to move any fuzzies or smooth things out a bit (use gently!).

Click to expand...

John Vaeth said:

I sometimes use the 3/4" 3M radial polishing discs (white, 120 grit) to move any fuzzies or smooth things out a bit (use gently!)

Click to expand...

Hi John- I see on-line several different types of 3m radial bristle disks and am not sure which I should get. Do you have a part number or some other reference for what has worked for you? Thanks

Will Armstrong said:

Hi John- I see on-line several different types of 3m radial bristle disks and am not sure which I should get. Do you have a part number or some other reference for what has worked for you? Thanks

Click to expand...

I had to do some digging because I hadn't purchased these in a while. I found my 2019 order from Amazon at this link: https://www.amazon.com/Scotch-Brite...ite+radial+disc+1+,industrial,219&sr=1-3&th=1
They were listed under 3M's Scotch Brite brand. I mistakenly said 3/4" but they are actually 1" discs. I checked the link on Amazon and it wasn't clear whether a mandrel is included and the page didn't list the number of discs in the package (I sent a message to Amazon to have these issues corrected). I believe there are 20 discs per package. The discs do wear down over time. You stack three together on the mandrel and don't run at the top speed of your rotary tool to avoid too rapid wear. I know they are crazy expensive for what they are but they do work well. There is a Chinese off-brand on Amazon that is much cheaper but I have never tried them. Hope this helps.

Great information! Thanks John. I appreciate your effort in digging that up.

very elegant John !

Love the proportions and elegant use of negative space!

Good job!
